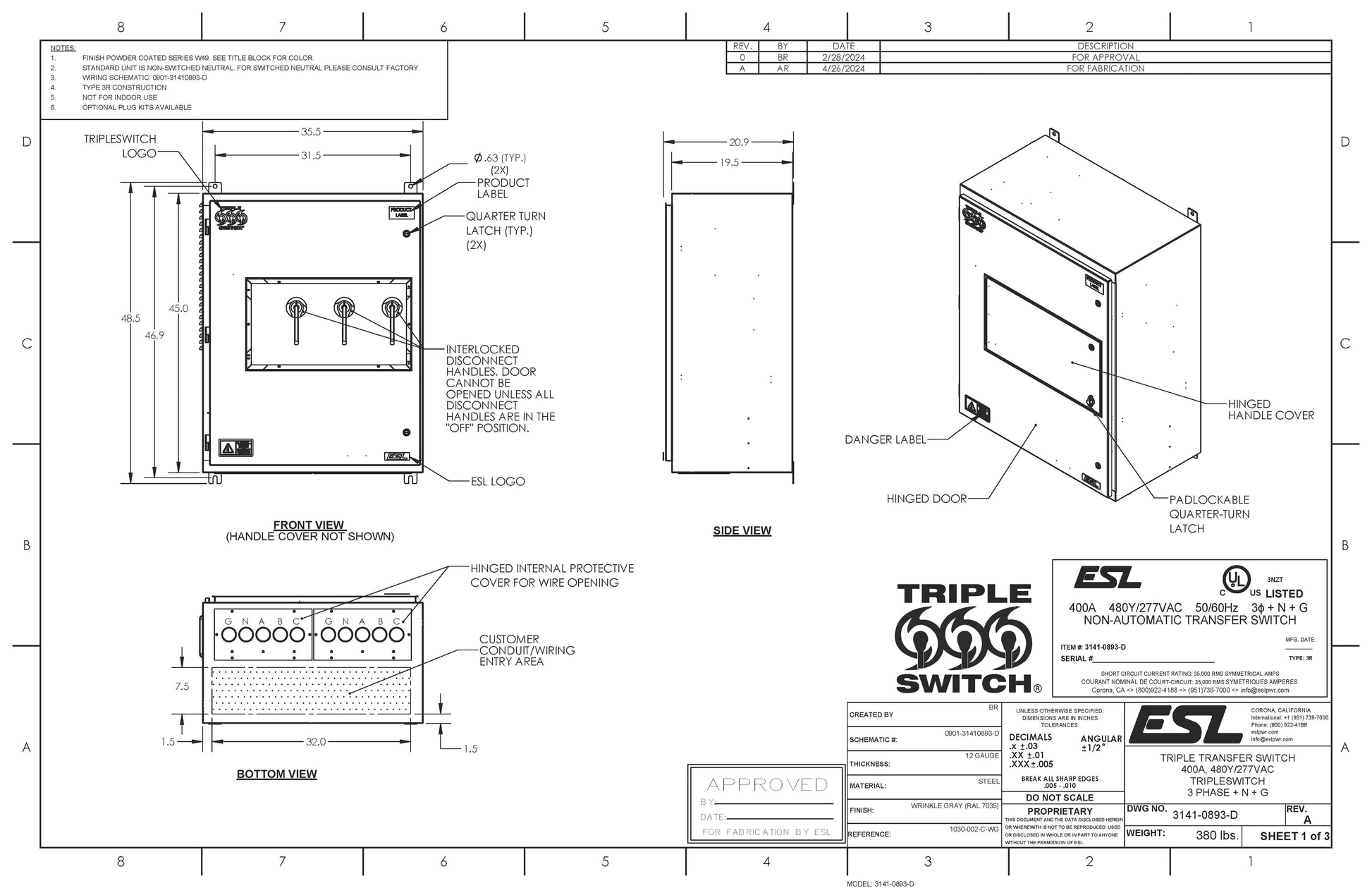

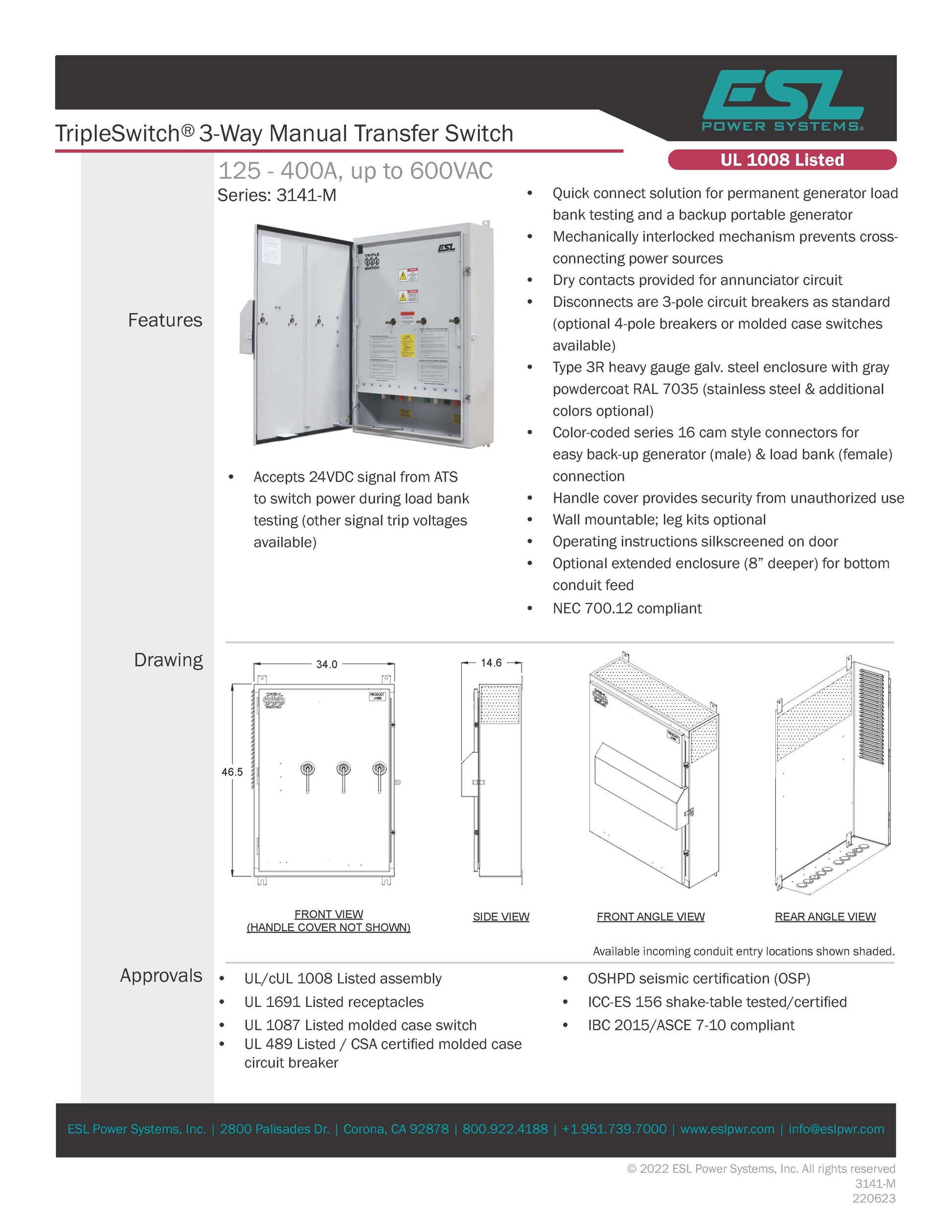

Quick connect solution for permanent generator load bank testing and a backup portable generator

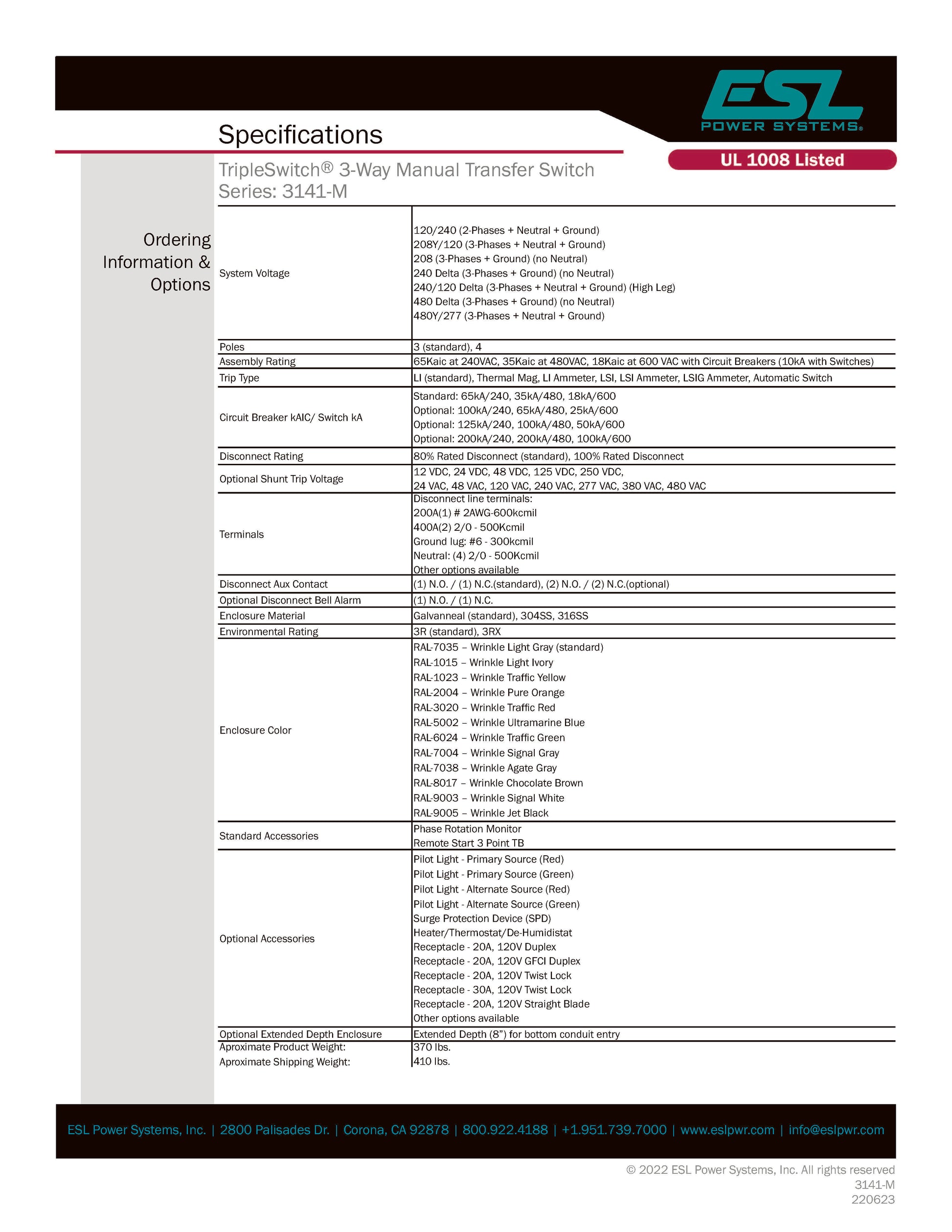

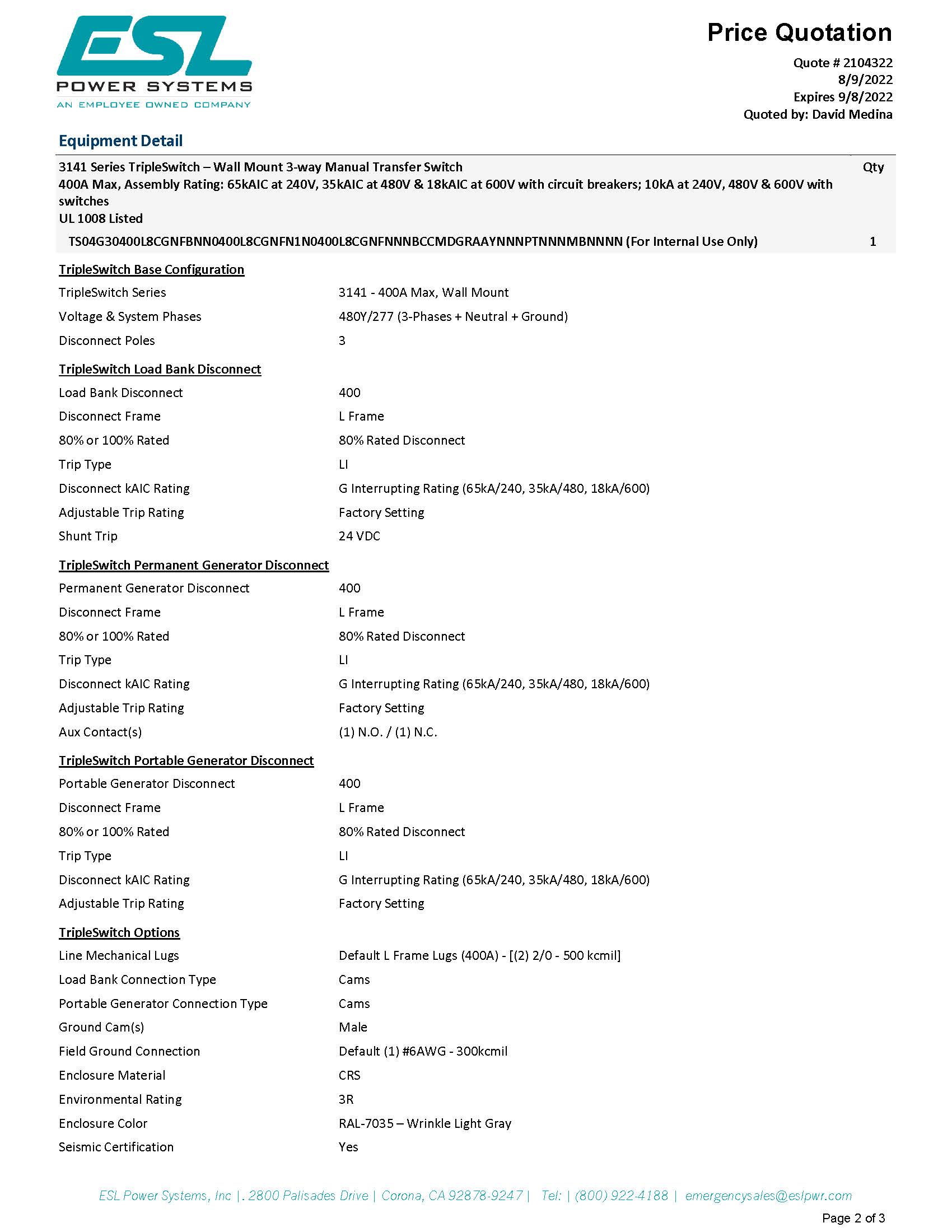

400amp, 480Y/277 (3 phases + neutral+ ground)
Manufactured by ESL Power Systems - New Never Installed

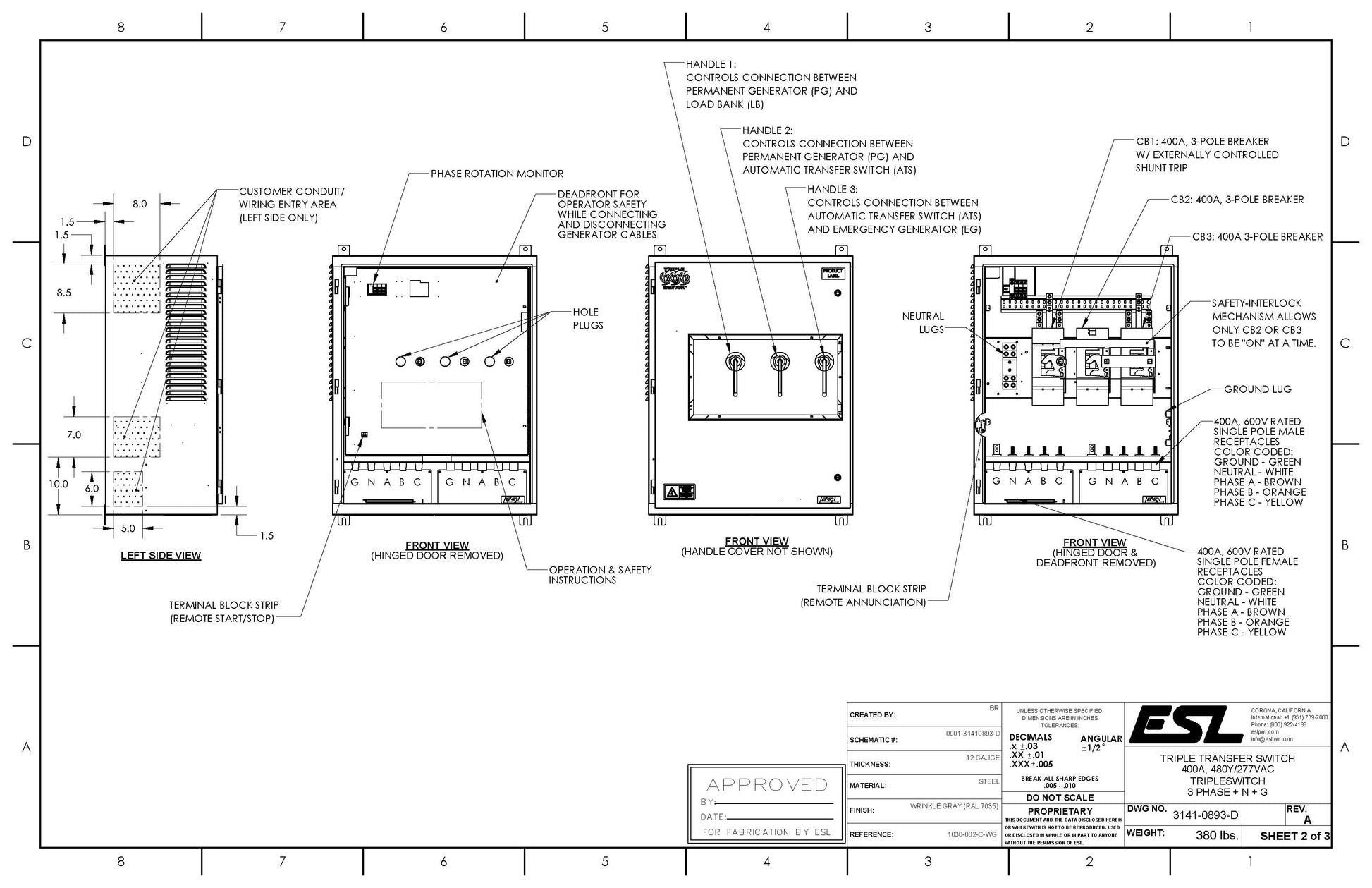

• Mechanically interlocked mechanism prevents cross-connecting power sources • Dry contacts provided for annunciator circuit • Disconnects are 3-pole circuit breakers as standard • Type 3R heavy gauge galv. steel enclosure with gray powdercoat RAL 7035 • Color-coded series 16 cam style connectors for easy back-up generator (male) & load bank (female) connection • Handle cover provides security from unauthorized use • Wall mountable; leg kits optional • Operating instructions silkscreened on door • Optional extended enclosure (8” deeper) for bottom conduit feed • NEC 700.12 compliant
